How to add RCM Safety Integrity Level Base file

How to add RCM Safety Integrity Level Base file

Safety Integrity Level

Safety Integrity Level (SIL) is defined as a relative level of risk-reduction provided by safety integrity of a safety function, or to specify a target level of risk reduction. This helps the user to identify critical Failure Modes and availability requirements.

Adding new Safety Integrity Level

  1. Select the Safety Integrity Level tab.
  2. Select the "Add" button.

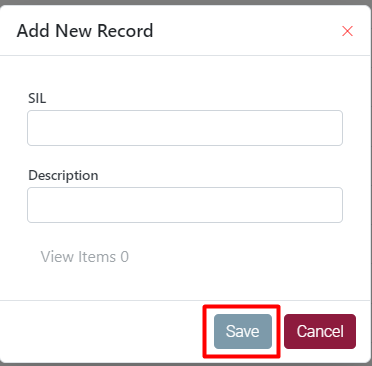

  1. Capture the "Safety Integrity Level" (SIL).
  2. Capture the "Description".
  3. Click "Save" to clear the pop-up.




Editing and Deleting existing Safety Integrity Levels

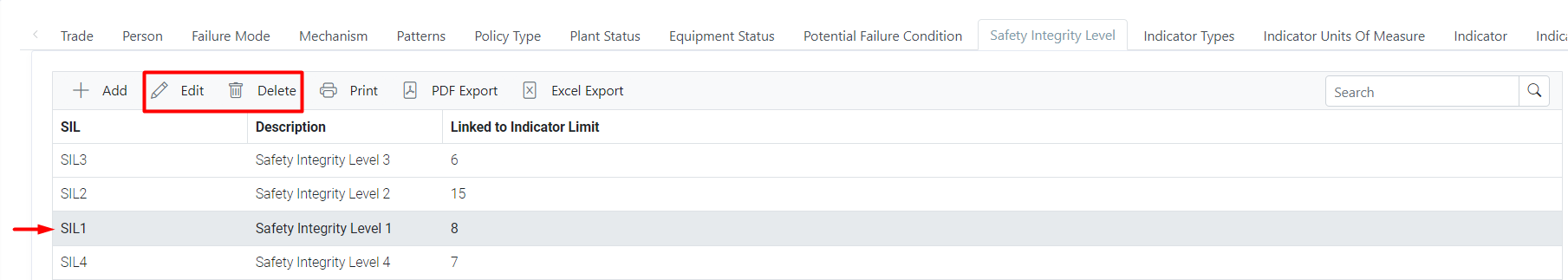

  1. Select the "Safety Integrity Level" SIL record that you wish to update. The row will be highlighted grey to indicate its selection.
  2. Click the "Edit" or "Delete" button.



  1. If "Delete" is selected, a pop-up window will appear requesting the user to confirm the deletion. Click delete to continue and the record will be removed from the grid. If this action was a mistake, then click cancel.
  2. If the "Edit" button is selected, update the SIL details.
  3. Click "Save".
